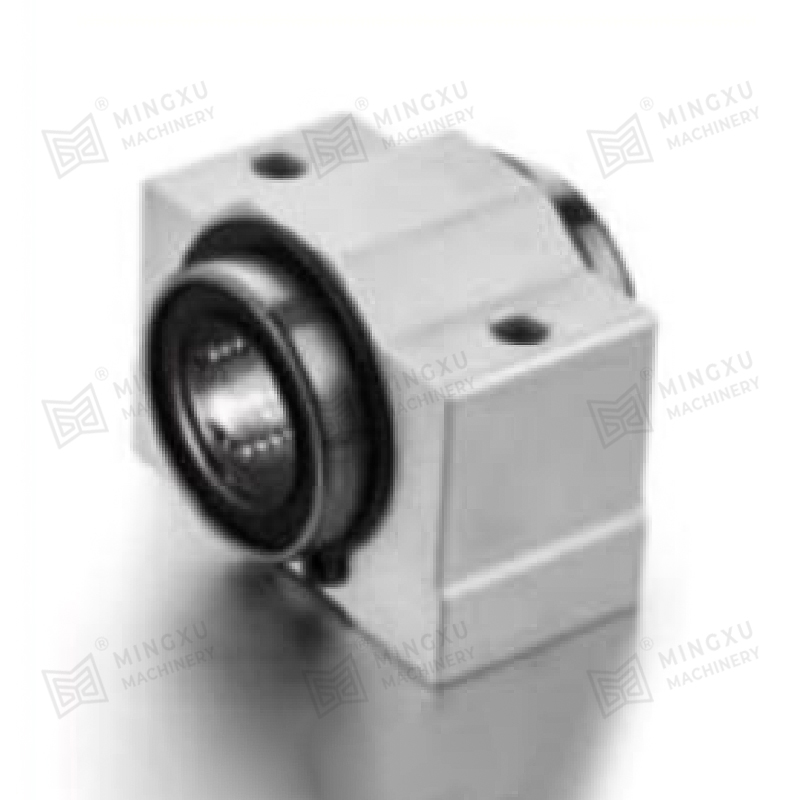

SC/SC…L/SC…S aluminum slide units

The SC standard aluminum slide unit facilitates straightforward installation through the use of screws, leveraging the inherent compatibility of linear bearings with threaded fastening systems. This design allows for rapid integration into mechanical assemblies, with the linear bearings ensuring smooth and precise axial motion along the slide's guide rails.

The SC…L long-length aluminum slide unit incorporates two standard linear motion ball bearings, enhancing its load-bearing capacity and stability over extended strokes. This dual-bearing configuration optimizes the distribution of forces, reducing wear and tear on individual components and extending the operational lifespan of the slide unit, particularly suited for applications requiring sustained linear motion over greater distances.

In contrast, the SC…S shortened aluminum slide unit features a single standard linear motion ball bearing, offering a more compact footprint without compromising on fundamental linear motion performance. This design choice makes it ideal for space-constrained environments where every millimeter counts, providing a balance between size efficiency and operational reliability in linear guidance applications.

Get A Quote

PREV：No previous article NEXT：SCJ clearance adjustment aluminium slide units(include along shaft groove)

Product Introduction
Parameter
Material Description
Contact Us

Type	Description	Material
		Outer cylinder	Retainer
Standard Type	Closed type outside cylinder.	Steel	Steel
			Resin
Adjustable Type	This type has a slot in the outside cylinder.This design allows for clearance adjustment.	Steel	Steel
			Resin
Open Type	One ball circuit is removed to alow an openingslot to fit over rail supports.	Steel	Steel
			Resin
Double-Wide Type	This type has two retainers in the outside cylinder.This structure is useful when momentloads areapplied to the slide bush.	Steel	Steel
			Resin
Pressing Outer Race Type	Outer race is pressing.	Steel	Resin
Stroke Bearing	Closed type outside cylinder.	Steel	Aluminum

Product Features

1 Can work for a long time under oil-free conditions.

2 More suitable for low-speed and heavy-load workingconditions, with good wear resistance and extremely low frict.

3 Suitable for situations where oil film is difficult to form, such as reciprocating, rotating and intermittent movements.

4 Resistant to corrosion and oxidation.

5 Maintenance-free and long service life.

Zhejiang Mingxu Machinery Manufacturing Co., Ltd.

Why Choose Oilless Bearings

Reduce Manufacturing costs

There is no need for oil supply device, oil injection hole or oil groove processing, which can greatly save manufacturing costs.

Reduce Operating Costs

It greatly reduces the usage of lubricating oil, reduces equipment maintenance, and avoids hidden dangers caused by insufficient oil supply, effectively reducing operating costs.

Shorten Design Time

The oil-free design simplifies the product structure and effectively saves design time. We are professional ODM Suppliers of SC/SC…L/SC…S aluminum slide units

Conducive To Environmental Protection

No waste oil recycling is required, which is also beneficial to environmental protection.

Application Fields

High Temperature

·Steel factory

·Smelting furnace

·Drying equipment

·Baking oven

·Heat controller

Water Proof

·Dam gate

·Water pump

·Fluid switch structure

·Offshore structures

·Dock and silt machine equipment

Chemical Industry

·Chemical factory

·Electroplating equipment

·Wastewater treatment equipment

·Dyeing machinery

·Oil and chemical refining equipment

Energy

·Wind power

·New energy

Ship

·Deck crane

·Anchor

·Hatch cover

·Rudder arm

·Lifting machinery and lifting ring equipment

Automobile Manufacturing

·Stamping mold

·Welding structure

·Painting and drying line

·Metal conveyor belt

·Machine tools

Heavy Industry

·Steel pipe factory machinery

·Tire and paper mills

·Power plant

·Connecting toggle of mold injection machinery

Construction, Mining, Loading

·Mixers, grinders, pulverizers

·Construction machinery

·Mining equipment

·Connecting rod bearings

Bridges and Lift Rails

·Bridge bearings

·Beams, bridges, suspension bridges

·Nuclear energy related reactors

·Steam generator


SC…UU	SC…LUU	SC…SUU

Standard		Basic load rating		Weignt (g)	Length type		Basic load rating		Weignt (g)	Shorten type
Model	Liner bearing	Dynamic C N	Static Co N	Weignt (g)	Model	Liner bearing	Dynamic CN	Static CoN	Weignt (g)	Model	Liner bearing
SC6UU	LM6UU	206	265	34	一	—	_	一	一	一	—
SC8UU	LM8UU	274	392	56	SC8LUU	2xLM8UU	431	784	94	SC8SUU	LM8UU
SC10UU	LM10UU	372	549	90	SC10LUU	2xLM10UU	588	1,100	147	SC10SUU	LM10UU
SC12UU	LM12UU	510	784	112	SC12LUU	2xLM12UU	813	1,570	220	SC12SUU	LM12UU
SC13UU	LM13UU	510	784	123	SC13LUU	2xLM13UU	813	1,570	245	SC13SUU	LM13UU
SC16UU	LM16UU	774	1,180	189	SC16LUU	2xLM16UU	1,230	2,350	376	SC16SUU	LM16UU
SC20UU	LM20UU	882	1,370	237	SC20LUU	2xLM20UU	1,410	2,740	476	SC20SUU	LM20UU
SC25UU	LM25UU	980	1,570	555	SC25LUU	2xLM25UU	1,610	3.140	1,115	SC25SUU	LM25UU
SC30UU	LM30UU	1.570	2,740	685	SC30LUU	2xLM30UU	2,450	5,490	1,375	SC30SUU	LM30UU
SC35UU	LM35UU	1,670	3,140	1,100	SC35LUU	2xLM35UU	2,650	6,270	2,200	SC35SUU	LM35UU
SC40UU	LM40UU	2.160	4,020	1,600	SC40LUU	2xLM40UU	3,430	8,040	3,200	SC40SUU	LM40UU
SC50UU	LM50UU	3,820	7,940	3,350	SC50LUU	2xLM50UU	6,080	15,900	6,720	SC50SUU	LM50UU
SC60UU	LM60UU	4,700	10,000	4,720	SC60LUU	2xLM60UU	7,550	20,000	8,480	SC60SUU	LM60UU
SC80UU	LM80UU	7,350	16,000	8,100	SC80LUU	2xLM80UU	11,500	32,000	15,100	SC80SUU	LM80UU

Basic load rating		Weight (g)	Dimensions (mm)
Basic load rating			Shaft diameter mm	Nominal dimensions (mm)										SC···UU		SC···LUU		SC···SUU
Dynamic C N	Static Co N		Shaft diameter mm	h	D	W	H	G	A	J	E	S1×I	S2	K	L	Kφ	Lφ	Ls
一	—	一	Φ6	9	15	30	18	15	6	20	5	M4×8	Φ3.4	15	25	—	一	一
260	400	36	Φ8	11	17	34	22	18	6	24	5	M4×8	Φ3.4	18	30	42	58	15.4
370	540	63	Φ10	13	20	40	26	21	8	28	6	M5×12	Φ4.3	21	35	46	68	19.5
410	590	74	Φ12	15	21	42	28	24	8	30.5	5.75	M5×12	Φ4.3	26	36	50	70	20.5
500	770	85	Φ13	15	22	44	30	24.5	8	33	5.5	M5×12	Φ4.3	26	39	50	75	20.5
770	1,170	132	Φ16	19	25	50	38.5	32.5	9	36	7	M5×12	Φ4.3	34	44	60	85	23.5
860	1,370	170	Φ20	21	27	54	41	35	11	40	7	M6×12	Φ5.2	40	50	70	96	27.4
980	1.560	405	Φ25	26	38	76	51.5	42	12	54	11	M8×18	Φ7.0	50	67	100	130	37.4
1,560	2,740	495	Φ30	30	39	78	59.5	49	15	58	10	M8×18	Φ7.0	58	72	110	140	40.9
1,660	3.130	790	Φ35	34	45	90	68	54	18	70	10	M8×18	Φ7.0	60	80	120	155	45.4
2.150	4,010	1,220	Φ40	40	51	102	78	62	20	80	11	M10×25	Φ8.7	60	90	140	175	56.4
3,820	7,930	2,300	Φ50	52	61	122	102	80	25	100	11	M10×25	Φ8.7	80	110	160	215	68.9
4,700	10,000	3,530	Φ60	58	66	132	114	94	30	108	12	M12×25	Φ10.7	90	122	180	240	78.8
7,350	16,000	7,020	Φ80	75	81	162	148	125	35	138	12	M12×30	Φ10.7	120	155	230	303	97.3


SCE···UU	SCE···LUU	SCE···SUU

Standard		Basic load rating		Weignt (g)	Length type		Basic load rating		Weignt (g)	Shorten type
Model	Liner bearing	Dynamic C N	Static CoN	Weignt (g)	Model	Liner bearing	Dynamic CN	Static CoN	Weignt (g)	Model	Liner bearing
SCE8UU	LME8UU	260	400	60	SCE8LUU	2xLME8UU	410	800	98	SCE8SUU	LME8UU
SCE12UU	LME12UU	410	590	118	SCE12LUU	2XLME12UU	650	1,180	232	SCE12SUU	LME12UU
SCE16UU	LME16UU	770	1,170	180	SCE16LUU	2xLME16UU	1,230	2,340	360	SCE16SUU	LME16UU
SCE20UU	LME20UU	860	1,370	245	SCE20LUU	2xLME20UU	1,370	2,740	490	SCE20SUU	LME20UU
SCE25UU	LME25UU	980	1,560	550	SCE25LUU	2xLME25UU	1,560	3.120	1,100	SCE25SUU	LME25UU
SCE30UU	LME30UU	1,560	2,740	760	SCE30LUU	2xLME30UU	2,490	5,480	1,525	SCE30SUU	LME30UU
SCE40UU	LME40UU	2,150	4,010	1,700	SCE40LUU	2xLME40UU	3,440	8,020	3,400	SCE40SUU	LME40UU
SCE50UU	LME50UU	3,820	7,930	2,950	SCE50LUU	2xLME50UU	6,110	15,860	5,920	SCE50SUU	LME50UU
SCE60UU	LME60UU	4,700	9,800	5,330	SCE60LUU	2xLME60UU	7,550	20,000	9,760	SCE60SUU	LME60UU

Basic load rating		Weight (g)	Dimensions (mm)
Basic load rating			Shaft diameter	Nominal dimensions (mm)										SCE···UU		SCE···LUU		SCE···SUU
Dynamic C N	Static Co N		Shaft diameter	h	D	W	H	G	A	J	E	S1×I	S2	K	L	Kφ	Lφ	Ls
260	400	40	Φ8	11	17	34	22	18	6	24	5	M4×8	Φ3.4	18	30	42	58	14.4
410	590	82	Φ2	15	22	44	30	24.5	8	33	5.5	M5×12	Φ4.3	26	39	64	77	20.3
770	1,170	122	Φ16	19	25	50	38.5	32.5	9	36	7	M5×12	Φ4.3	34	44	79	89	22.3
860	1,370	176	Φ20	21	27	54	41	35	11	40	7	M6×12	Φ5.2	40	53	90	106	28.3
980	1,560	400	Φ25	26	38	76	51.5	42	12	54	11	M8×18	Φ7	50	67	119	136	40.4
1,560	2,740	570	Φ30	30	39	78	59.5	49	15	58	10	M8×18	Φ7	58	76	132	154	48.4
2,150	4,010	1,320	Φ40	40	51	102	78	62	20	80	11	M10×25	Φ8.7	60	90	150	180	56.4
3,820	7,930	1,900	Φ50	52	61	122	102	80	25	100	11	M10×25	Φ8.7	80	110	200	230	72.3
4,700	9,800	4,230	Φ60	58	66	132	114	94	30	108	12	M12×25	Φ10.7	100	137	220	270	95.5
