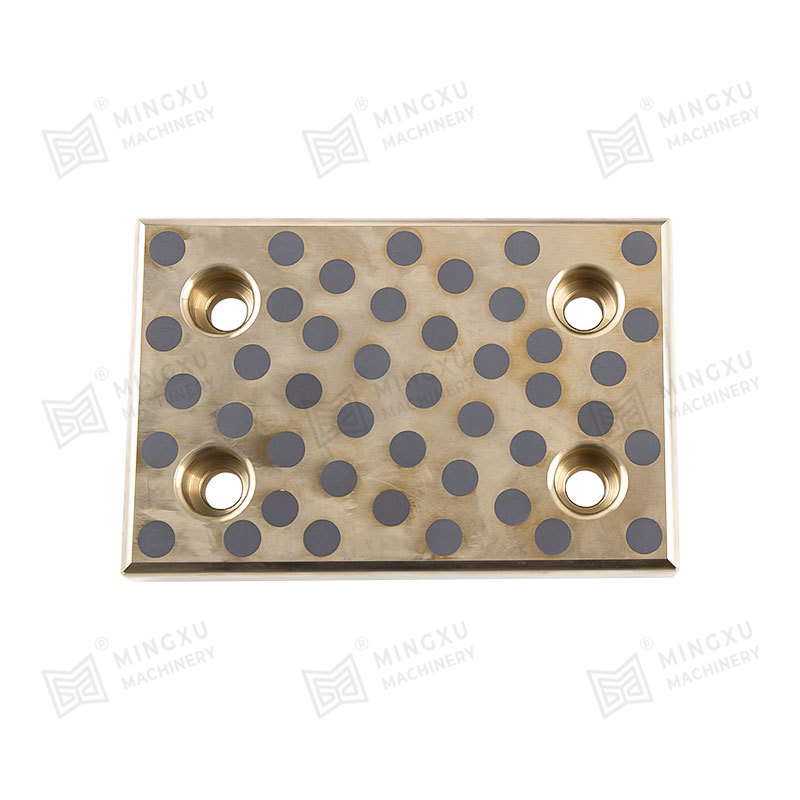

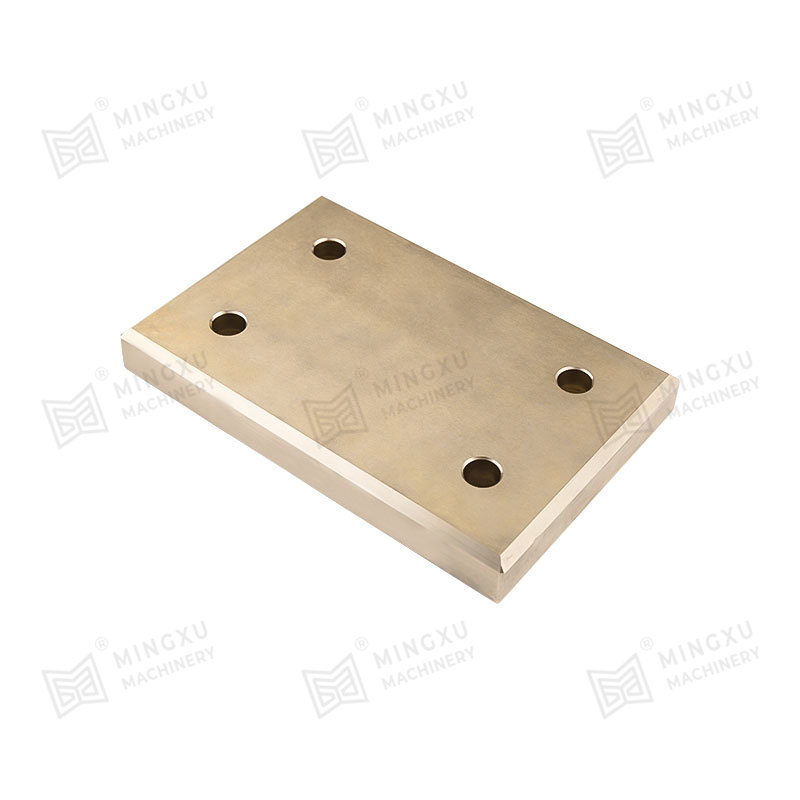

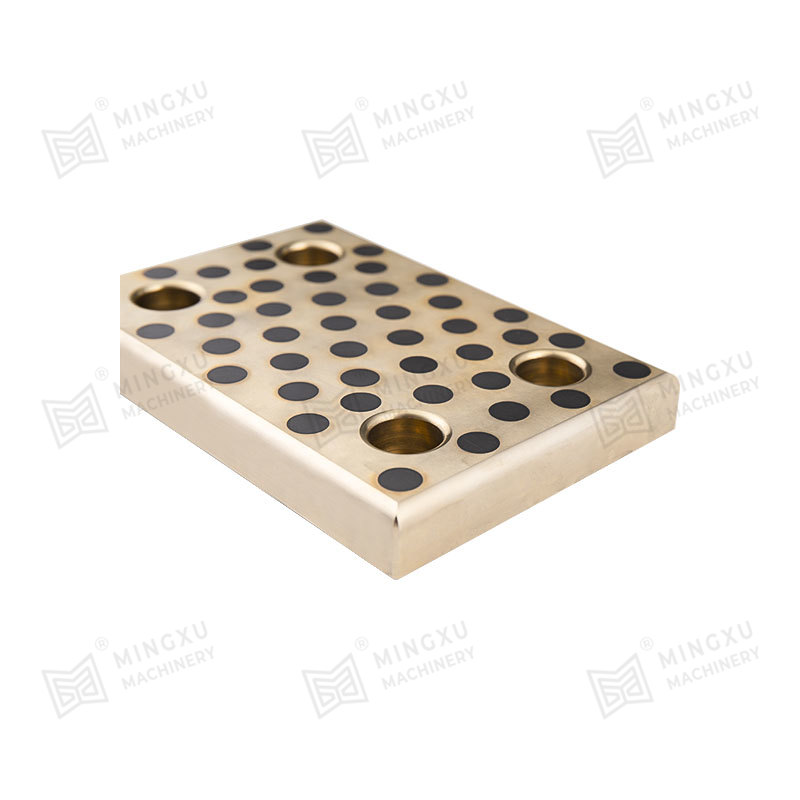

MXB-JESW 20mm Self-lubricating Copper alloy Wear Plate For Heavy Machinery

MXB-JESW slide plates are 2-hole and 4-hole wear-resistant heavy-duty slide plates. They are standardized products and compatible with many brands, such as HASCO, DME, MISUMI, STAUBLI, NITTO, PCS, DME-EOC, PUNCH, SLT, etc.

This product has the functions of traditional tin bronze bearings. Due to the use of high-strength brass (ZCuZn24Al6), its HB hardness is doubled. Therefore, when this product is used in low-speed applications, the life of ordinary bronze sleeves can be doubled. It has a large bearing pressure and can be used in heavy-duty applications.

Get A Quote
PREV：MXB-JTSW 20mm Copper alloy Wear Plate For Mining EquipmentNEXT：No next article
  • Product Introduction
  • Parameter
  • Material Description
  • Contact Us
  • Product Features
    1 Can work for a long time under oil-free conditions.
    2 More suitable for low-speed and heavy-load workingconditions, with good wear resistance and extremely low frict.
    3 Suitable for situations where oil film is difficult to form, such as reciprocating, rotating and intermittent movements.
    4 Resistant to corrosion and oxidation.
    5 Maintenance-free and long service life.
    Zhejiang Mingxu Machinery Manufacturing Co., Ltd.
    Zhejiang Mingxu Machinery Manufacturing Co., Ltd. Zhejiang Mingxu Machinery Manufacturing Co., Ltd.
    Zhejiang Mingxu Machinery Manufacturing Co., Ltd.
    Why Choose Oilless Bearings
    Reduce Manufacturing costs

    There is no need for oil supply device, oil injection hole or oil groove processing, which can greatly save manufacturing costs.

    Reduce Operating Costs

    It greatly reduces the usage of lubricating oil, reduces equipment maintenance, and avoids hidden dangers caused by insufficient oil supply, effectively reducing operating costs.

    Shorten Design Time

    The oil-free design simplifies the product structure and effectively saves design time. We are professional ODM Suppliers of JESW 20mm Self-lubricating Copper alloy Wear Plate For Heavy Machinery

    Conducive To Environmental Protection

    No waste oil recycling is required, which is also beneficial to environmental protection.

    Application Fields
    High Temperature

    ·Steel factory

    ·Smelting furnace

    ·Drying equipment

    ·Baking oven

    ·Heat controller

    Water Proof

    ·Dam gate

    ·Water pump

    ·Fluid switch structure

    ·Offshore structures

    ·Dock and silt machine equipment

    Chemical Industry

    ·Chemical factory

    ·Electroplating equipment

    ·Wastewater treatment equipment

    ·Dyeing machinery

    ·Oil and chemical refining equipment

    Energy

    ·Wind power

    ·New energy

    Ship

    ·Deck crane

    ·Anchor

    ·Hatch cover

    ·Rudder arm

    ·Lifting machinery and lifting ring equipment

    Automobile Manufacturing

    ·Stamping mold

    ·Welding structure

    ·Painting and drying line

    ·Metal conveyor belt

    ·Machine tools

    Heavy Industry

    ·Steel pipe factory machinery

    ·Tire and paper mills

    ·Power plant

    ·Connecting toggle of mold injection machinery

    Construction, Mining, Loading

    ·Mixers, grinders, pulverizers

    ·Construction machinery

    ·Mining equipment

    ·Connecting rod bearings

    Bridges and Lift Rails

    ·Bridge bearings

    ·Beams, bridges, suspension bridges

    ·Nuclear energy related reactors

    ·Steam generator

  • unit:mm

    Part No. W L W1 W2 L1 L2
    JESW-28×75 28 75 - - 45 15
    JESW-28×100 100 50 25
    JESW-28×150 150 100
    JESW-38×75 38 75 45 15
    JESW-38×100 100 50 25
    JESW-38×150 150 100
    JESW-48×75 48 75 45 15
    JESW-48×100 100 50 25
    JESW-48×125 125 75
    JESW-48×150 150 100
    JESW-48×200 200 150
    JESW-58×75 58 75 45 15
    JESW-58×100 100 50 25
    JESW-58×150 150 100
    JESW-75×75 75 75 25
    JESW-75×100 100 50
    JESW-75×125 125 75
    JESW-75×150 150 100
    JESW-75×200 200 150
    JESW-100×100 100 100 50 25 50 25
    JESW-100×125 125 75
    JESW-100×150 150 100
    JESW-100×200 200 150
    JESW-100×250 250 200
    JESW-100×300 300 200 50
    JESW-125×125 125 125 37.5 75 25
    JESW-125×150 150 100
    JESW-125×200 200 150
    JESW-125×250 250 200
    JESW-125×300 300 200 50
    JESW-125×350 350 200 75
    JESW-150×150 150 150 100 25 100 25
    JESW-150×200 200 150
    JESW-150×250 250 200
  • Material Composition and Properities
    Material CuZn25Al5Mn3Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn25Al5Mn4Fe3
    Density 8.0 8.9 7.8 8.9 8.0
    Hardness HB >210 >70 >150 >95 >250
    Tensile Strength N/mm² >750 >200 >600 >260 >800
    Yield Strength N/mm² >450 >90 >260 >150 >450
    Elongation% >12 >15 >10 >৪ >800
    Coefficien of Linear Expansion 10-5/℃ 1.9 1.8 1.6 1.8 1.9
    Limit Temp ℃ -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
    Max. Load N/mm² 100 60 50 70 120
    Max. Speed (Dry) m/min 15 10 20 10 15
    Max.PV N/mm²*m/min 200 60 60 80 200
    Compression of Permanent Deformation 300N/mm² <0.01 <0.05 <0.04 <0.05 <0.05
    *Big demand with special materials is available.

    Base Material Interchange
    Material Codes China Brands
    GB1176-87    		 Intenational
    ISO 1338    		 Germany
    DIN    		 Japan
    JIS    		 America
    ASTM(UNS)    		 England
    BS    		 Italy
    JM    		 Applicable conditions
    JDB Casted Bronze ZCuZn25AI5
    Fe3Mn3    		 GCuZn25AI6
    Fe3Mn3    		 DIN1709
    G-CuZn25AI5    		 H5102
    CAC304    		 B30-92
    C86300    		 HTB2 JM18-1 High-load, low speed Commonly used
    JDB-1Bronze ZCuSn5
    Pb5Zn5    		 GCuPb5
    Sn5Zn5    		 DIN1705
    G-CuSn5ZnPb    		 H5111
    BC6    		 B30-92
    C83600    		 LG2 JM7-15 Mid-load, low speed Commonly used
    JDB-2Bronze ZCuAI9Fe4 Ni4Mn2 GCuAI10
    FeNiS    		 DIN17656
    G-CuAI10Ni    		 H5114
    AIBC3    		 B30-92
    C95500    		 AB2 JM3-15 Mid-load, mid-speed, Commonly used
    JDB-3Bronze ZCuSn12 G-CuSn12 CAC503B B30-92
    C90800    		 PB2 JM1-15 Mid-load, low speed, Commonly used
    JDB-5 ZCuZn25AI6 Fe3Mn3 GCuZn25AI6
    Fe3Mn3    		 DIN1709
    G-CuZn25AI5    		 H5102
    CAC304    		 B30-92
    C86300    		 HTB2 JM18-1 Over high load, low speed, High load used

    Solid Lubricant
    Lubricant Features Typical application
    SL1
    Graphite+add    		 Excellent resistance against chemical
    attacks and low friction, Temp limit 400℃    		 Suit for general machines and
    under atmosphere
    SL4
    PTFE+add    		 Lowest in friction and good of water Lubrication,Temp limit 300℃ Ship, hydraulic turbine, gas turbine, etc.
    SUBMIT

Related Products

About US

Zhejiang Mingxu Machinery Manufacturing Co., Ltd. Zhejiang Mingxu Machinery Manufacturing Co., Ltd., formerly known as Jiashan Mingxu Precision Machinery Factory, was founded in 2011. The company is located in the hinterland of the Yangtze River Delta Integrated Development Demonstration Zone, with location and convenient transportation. With more than ten years of manufacturing and R&D experience, the company has been deeply involved in the development and production of solid lubricating bearings, skateboards, slideways, and sliders. ODM Suppliers and Company of JESW 20mm Self-lubricating Copper alloy Wear Plate For Heavy Machinery in China. The product manufacturing adopts modern automation equipment, strictly implements the ISO2000 quality management system standard, and the main processes are processed by high-precision CNC machines. The company's main products cover a series of products such as JDB solid inlaid self-lubricating bearings, steel-copper sintered bearings, SF-1 self-lubricating bearings, SF-2 boundary self-lubricating bearings, and FB090 copper bearings. Widely used in automobile industry, construction machinery, metallurgical equipment, mining machinery, injection molding, mold, textile, printing and many other machinery manufacturing fields; Till now, the company's products have spread all over China and exported to many foreign countries, and are deeply recognized and loved by domestic and foreign customers.

Mingxu Machinery adheres to the service tenet of "quality-oriented high-quality service", and strive to provide customers with professional products and services. Supply Wholesale MXB-JESW 20mm Self-lubricating Copper alloy Wear Plate For Heavy Machinery. The company will continue to introduce talents, improve the management mechanism, integrity, development, innovation, and strive to build a world-class brand.

Zhejiang Mingxu Machinery Manufacturing Co., Ltd.

Certificate Of Honor

News

Product knowledge

What specific properties and ingredients does JESW Wear Plate For Heavy Machinery have that contribute to its use in heavy machinery applications?

JESW Wear Plate for Heavy Machinery is designed with specific properties and ingredients that contribute to its exceptional performance in heavy machinery applications. Some of these key features and factors include:
Hardness: JESW wear plate exhibits high hardness levels, usually ranging from 58 to 63 HRC (Rockwell Hardness Scale). This hardness is achieved through the controlled addition of alloying elements and careful heat treatment processes. The high hardness ensures excellent resistance against wear, abrasion, and impact, making it ideal for heavy machinery working in harsh and abrasive conditions.
Chromium Carbide Overlay (CCO): JESW wear plate incorporates a tough layer of chromium carbide overlay on its surface. Chromium carbide is a hard compound that significantly enhances the wear resistance of the plate. The CCO layer acts as a protective barrier against abrasive particles and provides protection to the underlying base material. By incorporating chromium carbide overlay, JESW wear plate is capable of withstanding severe wear and prolonging the service life of heavy machinery components.
Resistance to Abrasion and Erosion: JESW wear plate has excellent resistance to abrasion and erosion caused by continuous contact with abrasive materials, such as rocks, ores, gravel, and sand. The hard chromium carbide overlay layer resists material loss due to impact and sliding wear, ensuring the longevity of components subjected to high erosion or abrasion.
Impact Resistance: Heavy machinery often encounters high impact forces during operation. JESW wear plate is specifically engineered to withstand impact loadings without cracking or fracturing. Its composition and heat treatment processes ensure that it can effectively absorb impact energies and distribute them across the plate's surface, preventing local damage or failure.
Weldability and Workability: JESW wear plate is designed to be easily welded onto various components of heavy machinery, such as buckets, liners, and blades. It offers excellent weldability, allowing for hassle-free integration and replacement of worn-out parts. Additionally, JESW wear plate can be cut, formed, and fabricated to suit the specific requirements of different machinery and operating conditions.
