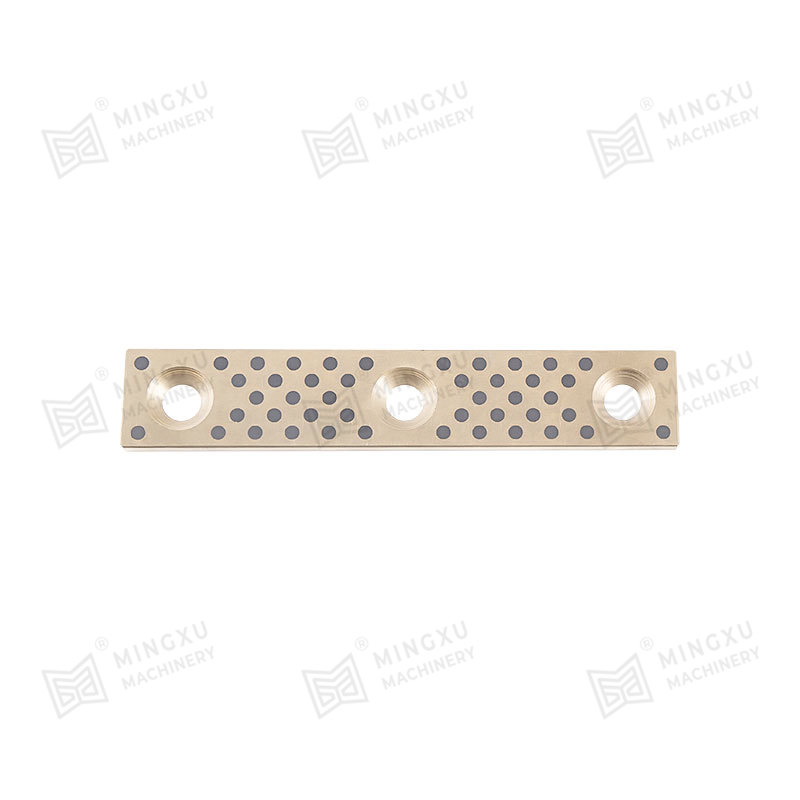

MXB-JUWP 5mm Copper alloy Self-lubricating Wear Plate For Construction Industry

MXB-JUWP self-lubricating wear-resistant plate is a 5mm thick self-lubricating graphite inlaid wear-resistant plate developed and produced by Mingxu Machinery. It has been used in many scenarios. Taking the construction industry as an example, it is mainly used for the protection of building structures. During the long-term use of building structures, they will be affected by natural factors such as wind, rain, and sun, which will cause corrosion and wear on the surface of the structure, affecting the stability and safety of the structure. The good wear resistance of MXB-JUWP self-lubricating wear-resistant plate can effectively solve this problem. By covering the surface of the structure for protection, it can reduce corrosion and wear on the surface of the structure, thereby extending the service life of the structure.

Get A Quote
PREV：MXB-JOLP Wear Plate For Automotive IndustryNEXT：MXB-JTSW 20mm Copper alloy Wear Plate For Mining Equipment
  • Product Introduction
  • Parameter
  • Material Description
  • Contact Us
  • Product Features
    1 Can work for a long time under oil-free conditions.
    2 More suitable for low-speed and heavy-load workingconditions, with good wear resistance and extremely low frict.
    3 Suitable for situations where oil film is difficult to form, such as reciprocating, rotating and intermittent movements.
    4 Resistant to corrosion and oxidation.
    5 Maintenance-free and long service life.
    Zhejiang Mingxu Machinery Manufacturing Co., Ltd.
    Zhejiang Mingxu Machinery Manufacturing Co., Ltd. Zhejiang Mingxu Machinery Manufacturing Co., Ltd.
    Zhejiang Mingxu Machinery Manufacturing Co., Ltd.
    Why Choose Oilless Bearings
    Reduce Manufacturing costs

    There is no need for oil supply device, oil injection hole or oil groove processing, which can greatly save manufacturing costs.

    Reduce Operating Costs

    It greatly reduces the usage of lubricating oil, reduces equipment maintenance, and avoids hidden dangers caused by insufficient oil supply, effectively reducing operating costs.

    Shorten Design Time

    The oil-free design simplifies the product structure and effectively saves design time. We are professional ODM Suppliers of JUWP 5mm Copper alloy Self-lubricating Wear Plate For Construction Industry

    Conducive To Environmental Protection

    No waste oil recycling is required, which is also beneficial to environmental protection.

    Application Fields
    High Temperature

    ·Steel factory

    ·Smelting furnace

    ·Drying equipment

    ·Baking oven

    ·Heat controller

    Water Proof

    ·Dam gate

    ·Water pump

    ·Fluid switch structure

    ·Offshore structures

    ·Dock and silt machine equipment

    Chemical Industry

    ·Chemical factory

    ·Electroplating equipment

    ·Wastewater treatment equipment

    ·Dyeing machinery

    ·Oil and chemical refining equipment

    Energy

    ·Wind power

    ·New energy

    Ship

    ·Deck crane

    ·Anchor

    ·Hatch cover

    ·Rudder arm

    ·Lifting machinery and lifting ring equipment

    Automobile Manufacturing

    ·Stamping mold

    ·Welding structure

    ·Painting and drying line

    ·Metal conveyor belt

    ·Machine tools

    Heavy Industry

    ·Steel pipe factory machinery

    ·Tire and paper mills

    ·Power plant

    ·Connecting toggle of mold injection machinery

    Construction, Mining, Loading

    ·Mixers, grinders, pulverizers

    ·Construction machinery

    ·Mining equipment

    ·Connecting rod bearings

    Bridges and Lift Rails

    ·Bridge bearings

    ·Beams, bridges, suspension bridges

    ·Nuclear energy related reactors

    ·Steam generator

  • unit:mm

    Part No. W L W1 L1 d h Mounting Bolt
    JUWP-18×50 18 50 - 20 6.5 1.5 M6
    JUWP-18×75 75 45
    JUWP-18×100 100 70
    JUWP-18×150 150 60
    JUWP-28×50 28 50 20 10 0.8 M8
    JUWP-28×75 75 45
    JUWP-28×100 100 70
    JUWP-28×150 150 60
    JUWP-38×50 38 50 20
    JUWP-38×75 75 45
    JUWP-38×100 100 70
    JUWP-38×150 150 60
    JUWP-48×75 48 75 45
    JUWP-48×100 100 70
    JUWP-48×125 125 95
    JUWP-48×150 150 60
    JUWP-75×75 75 75 45 45
    JUWP-75×100 100 70
    JUWP-75×125 125 95
    JUWP-75×150 150 60
    JUWP-100×100 100 100 70 70
    JUWP-100×125 125 95
    JUWP-100×150 150 60
  • Material Composition and Properities
    Material CuZn25Al5Mn3Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn25Al5Mn4Fe3
    Density 8.0 8.9 7.8 8.9 8.0
    Hardness HB >210 >70 >150 >95 >250
    Tensile Strength N/mm² >750 >200 >600 >260 >800
    Yield Strength N/mm² >450 >90 >260 >150 >450
    Elongation% >12 >15 >10 >৪ >800
    Coefficien of Linear Expansion 10-5/℃ 1.9 1.8 1.6 1.8 1.9
    Limit Temp ℃ -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
    Max. Load N/mm² 100 60 50 70 120
    Max. Speed (Dry) m/min 15 10 20 10 15
    Max.PV N/mm²*m/min 200 60 60 80 200
    Compression of Permanent Deformation 300N/mm² <0.01 <0.05 <0.04 <0.05 <0.05
    *Big demand with special materials is available.

    Base Material Interchange
    Material Codes China Brands
    GB1176-87    		 Intenational
    ISO 1338    		 Germany
    DIN    		 Japan
    JIS    		 America
    ASTM(UNS)    		 England
    BS    		 Italy
    JM    		 Applicable conditions
    JDB Casted Bronze ZCuZn25AI5
    Fe3Mn3    		 GCuZn25AI6
    Fe3Mn3    		 DIN1709
    G-CuZn25AI5    		 H5102
    CAC304    		 B30-92
    C86300    		 HTB2 JM18-1 High-load, low speed Commonly used
    JDB-1Bronze ZCuSn5
    Pb5Zn5    		 GCuPb5
    Sn5Zn5    		 DIN1705
    G-CuSn5ZnPb    		 H5111
    BC6    		 B30-92
    C83600    		 LG2 JM7-15 Mid-load, low speed Commonly used
    JDB-2Bronze ZCuAI9Fe4 Ni4Mn2 GCuAI10
    FeNiS    		 DIN17656
    G-CuAI10Ni    		 H5114
    AIBC3    		 B30-92
    C95500    		 AB2 JM3-15 Mid-load, mid-speed, Commonly used
    JDB-3Bronze ZCuSn12 G-CuSn12 CAC503B B30-92
    C90800    		 PB2 JM1-15 Mid-load, low speed, Commonly used
    JDB-5 ZCuZn25AI6 Fe3Mn3 GCuZn25AI6
    Fe3Mn3    		 DIN1709
    G-CuZn25AI5    		 H5102
    CAC304    		 B30-92
    C86300    		 HTB2 JM18-1 Over high load, low speed, High load used

    Solid Lubricant
    Lubricant Features Typical application
    SL1
    Graphite+add    		 Excellent resistance against chemical
    attacks and low friction, Temp limit 400℃    		 Suit for general machines and
    under atmosphere
    SL4
    PTFE+add    		 Lowest in friction and good of water Lubrication,Temp limit 300℃ Ship, hydraulic turbine, gas turbine, etc.
    SUBMIT

Related Products

About US

Zhejiang Mingxu Machinery Manufacturing Co., Ltd. Zhejiang Mingxu Machinery Manufacturing Co., Ltd., formerly known as Jiashan Mingxu Precision Machinery Factory, was founded in 2011. The company is located in the hinterland of the Yangtze River Delta Integrated Development Demonstration Zone, with location and convenient transportation. With more than ten years of manufacturing and R&D experience, the company has been deeply involved in the development and production of solid lubricating bearings, skateboards, slideways, and sliders. ODM Suppliers and Company of JUWP 5mm Copper alloy Self-lubricating Wear Plate For Construction Industry in China. The product manufacturing adopts modern automation equipment, strictly implements the ISO2000 quality management system standard, and the main processes are processed by high-precision CNC machines. The company's main products cover a series of products such as JDB solid inlaid self-lubricating bearings, steel-copper sintered bearings, SF-1 self-lubricating bearings, SF-2 boundary self-lubricating bearings, and FB090 copper bearings. Widely used in automobile industry, construction machinery, metallurgical equipment, mining machinery, injection molding, mold, textile, printing and many other machinery manufacturing fields; Till now, the company's products have spread all over China and exported to many foreign countries, and are deeply recognized and loved by domestic and foreign customers.

Mingxu Machinery adheres to the service tenet of "quality-oriented high-quality service", and strive to provide customers with professional products and services. Supply Wholesale MXB-JUWP 5mm Copper alloy Self-lubricating Wear Plate For Construction Industry. The company will continue to introduce talents, improve the management mechanism, integrity, development, innovation, and strive to build a world-class brand.

Zhejiang Mingxu Machinery Manufacturing Co., Ltd.

Certificate Of Honor

News

Product knowledge

What is the biggest difference between JUWP Wear Plate For Construction Industry and wear-resistant plates used in other industries?

The biggest difference between JUWP Wear Plate for the construction industry and wear-resistant plates used in other industries lies in their respective applications, composition, and specific characteristics.
Application:
JUWP Wear Plate for the construction enterprise is specially designed and synthetic to face up to excessive wear and abrasion in construction-related applications. It is generally used in heavy equipment, system, and systems involved in creation, excavation, mining, and different comparable industries. These plates are typically used in production equipment consisting of excavator buckets, bulldozer blades, dump truck beds, and crushers.
Wear-resistant plates used in other industries, on the other hand, cater to the specific wear requirements of various sectors such as mining, cement, metallic, agriculture, strength, and so forth. These plates are utilized in numerous system and equipment within the ones industries where wear and abrasion resistance are important. They may consist of programs in chutes, hoppers, liners, conveyor structures, and grinding mills.
Composition:
The composition of JUWP Wear Plate for the construction industry is formulated to provide exceptional hardness, toughness, and abrasion resistance required in construction applications.Typically, these plates include a base fabric, generally steel, mixed with numerous alloying factors such as chromium, carbon, manganese, and other wear-resistant additives. The precise composition can also vary depending at the desired properties and alertness requirements.
Wear-resistant plates in other industries also have varying compositions relying on the specific wishes of the industry they serve. For example, plates used in the mining industry may also have higher alloy content material to face up to impact and abrasion from rocks, while plates used within the cement industry may additionally require corrosion resistance together with put on resistance.
Specific Characteristics:
JUWP Wear Plate for the construction industry possesses distinct characteristics tailored to construction applications.  These plates offer top notch hardness, which allows them to face up to high impact forces and face up to deformation under heavy hundreds. They also provide excessive abrasion resistance, making sure longevity and sturdiness even in harsh environments. Additionally, those plates regularly have good weldability and may be easily custom designed or reduce to suit distinctive gadget parts.
Wear-resistant plates used in other industries may also exhibit properties unique to their respective applications. For instance, plates used within the mining industry often have awesome impact resistance to face up to the steady pounding of rocks and different abrasive materials. Plates used inside the cement industry may also have extra chemical resistance to face up to corrosion from cement and different materials. The unique traits are tailor-made to the needs of specific industries and their specific put on demanding situations.
In summary, the important thing variations among JUWP Wear Plate for the construction industry and put on-resistant plates in other industries lie in their utility, composition, and particular characteristics. The construction industry plates are designed for unique production system and systems, with a composition optimized for hardness and abrasion resistance. Conversely, wear-resistant plates in different industries serve diverse applications within precise sectors, with compositions tailor-made to fulfill their specific needs, be it effect resistance, corrosion resistance, or different unique wear challenges.
