LMFP/LMKP/LMHP pilot flanged linear motion bearing

The pilot flanged linear motion bearing is constructed with a sliding wheel, roller, needle roller, or slide plate, complemented by an outer spherical surface and a flange. Its notable features include the presence of a specific pressure angle and contact angle within the bearing, enabling it to withstand substantial axial loads while maintaining high rigidity and rotational precision. Additionally, its flange design allows for secure attachment to machine tools or equipment.

This bearing is particularly suited for applications requiring resistance to large axial loads and demanding high rotational accuracy, such as in machine tools and rail transportation systems.

Get A Quote

PREV：LMFP…L/LMKP…L/LMHP…L double-wide-position-pilot flanged linear motion bearing NEXT：LMF…L/LMK…L/LMH…L double-wide flanged linear motion bearing

Product Introduction
Parameter
Material Description
Contact Us

Classifications of Flanged Linear Motion Ball Bearings

Type	Mounting example	Flange type	Length
Standard Flanged Type		LMF	Single
		LMK	Single
		LMH	Single
Double-Wide Flanged Type		LMF…L	Double
		LMK…L	Double
		LMH…L	Double
Pilot Flanged Type		LMFP	Single
		LMKP	Single
		LMHP	Single
Double-Wide-Position-Pilot Flanged Type		LMFP…L	Double
		LMKP…L	Double
		LMHP…L	Double
Double-Wide-Middle Flanged Type		LMFM…L	Double
		LMKM…L	Double
		LMHM…L	Double
Flanged Stroke Bearing		LBHR LBHRW	Single
		LBHS LBHSW	Single
		LBHC LBHCW	Single

Product Features

1 Can work for a long time under oil-free conditions.

2 More suitable for low-speed and heavy-load workingconditions, with good wear resistance and extremely low frict.

3 Suitable for situations where oil film is difficult to form, such as reciprocating, rotating and intermittent movements.

4 Resistant to corrosion and oxidation.

5 Maintenance-free and long service life.

Zhejiang Mingxu Machinery Manufacturing Co., Ltd.

Why Choose Oilless Bearings

Reduce Manufacturing costs

There is no need for oil supply device, oil injection hole or oil groove processing, which can greatly save manufacturing costs.

Reduce Operating Costs

It greatly reduces the usage of lubricating oil, reduces equipment maintenance, and avoids hidden dangers caused by insufficient oil supply, effectively reducing operating costs.

Shorten Design Time

The oil-free design simplifies the product structure and effectively saves design time. We are professional ODM Suppliers of LMFP/LMKP/LMHP pilot flanged linear motion bearing

Conducive To Environmental Protection

No waste oil recycling is required, which is also beneficial to environmental protection.

Application Fields

High Temperature

·Steel factory

·Smelting furnace

·Drying equipment

·Baking oven

·Heat controller

Water Proof

·Dam gate

·Water pump

·Fluid switch structure

·Offshore structures

·Dock and silt machine equipment

Chemical Industry

·Chemical factory

·Electroplating equipment

·Wastewater treatment equipment

·Dyeing machinery

·Oil and chemical refining equipment

Energy

·Wind power

·New energy

Ship

·Deck crane

·Anchor

·Hatch cover

·Rudder arm

·Lifting machinery and lifting ring equipment

Automobile Manufacturing

·Stamping mold

·Welding structure

·Painting and drying line

·Metal conveyor belt

·Machine tools

Heavy Industry

·Steel pipe factory machinery

·Tire and paper mills

·Power plant

·Connecting toggle of mold injection machinery

Construction, Mining, Loading

·Mixers, grinders, pulverizers

·Construction machinery

·Mining equipment

·Connecting rod bearings

Bridges and Lift Rails

·Bridge bearings

·Beams, bridges, suspension bridges

·Nuclear energy related reactors

·Steam generator

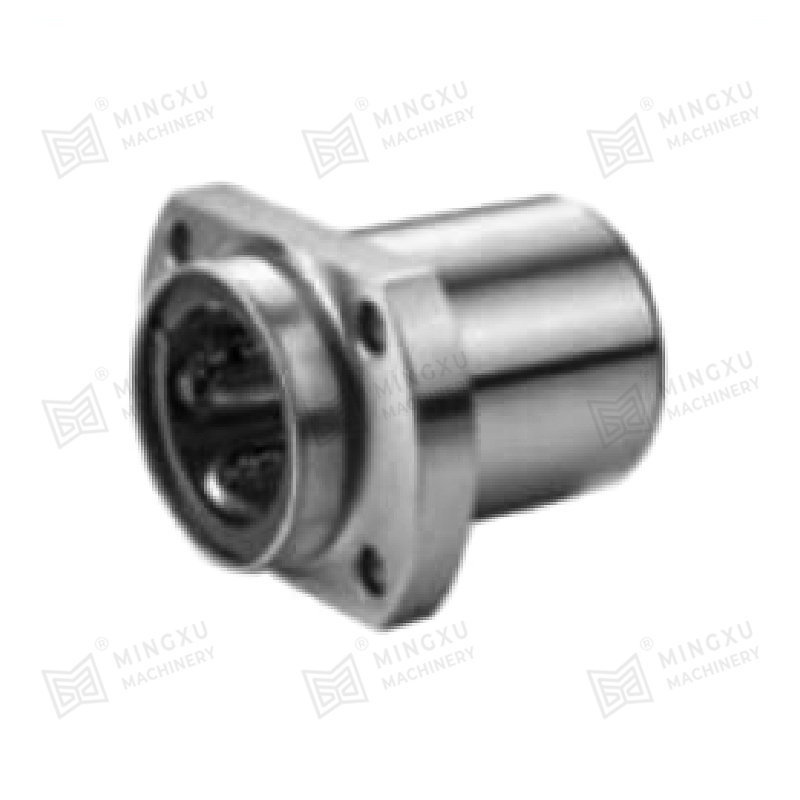

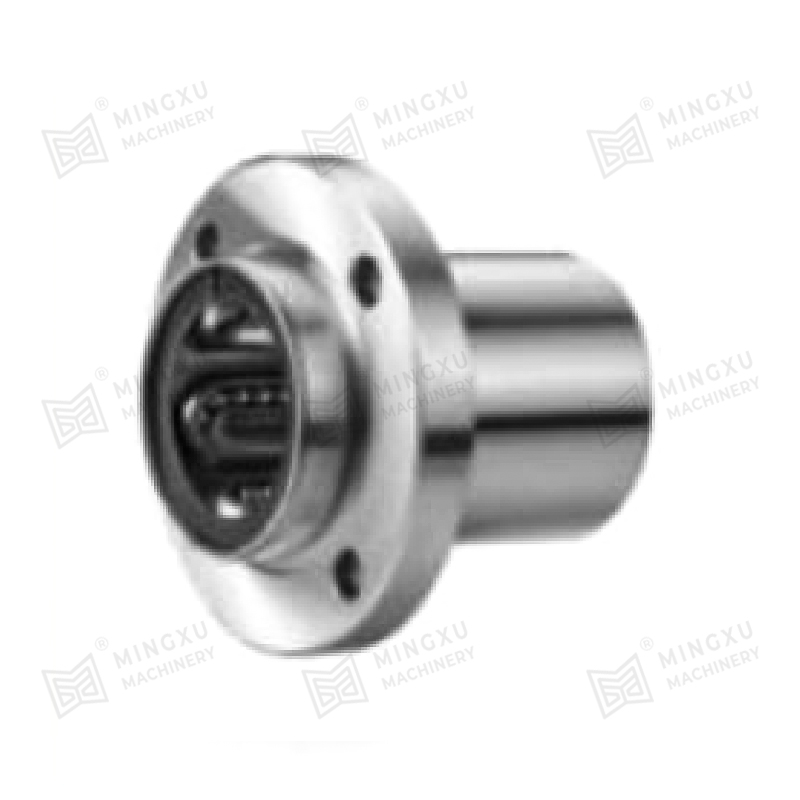

LMF(K)P···UU (Resin retainer)

This type is a metric dimension series widely used in Asia and
other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMFP···UU	LMKP···UU

Nominal shaft diameter mm	LMFP···UU	Weight (9)	LMKP···UU	Weight (g)	Major dimensions and tolerance
					dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMFP6UU	24	LMKP6UU	18	6	0 -9	12	0 -13	19	±300
8	LMFP8UU	37	LMKP8UU	29	8		15		24
10	LMFP10UU	72	LMKP10UU	52	10		19		29
12	LMFP12UU	76	LMKP12UU	57	12		21	0 -16	30	0 -200
13	LMFP13UU	88	LMKP13UU	72	13		23		32
16	LMFP16UU	120	LMKP16UU	104	16		28		37
20	LMFP20UU	180	LMKP20UU	145	20	0 -10	32	0 -19	42
25	LMFP25UU	340	LMKP25UU	300	25		40		59	0 -300
30	LMFP30UU	470	LMKP30UU	375	30		45		64
35	LMFP35UU	650	LMKP35UU	560	35	0 -12	52	0 -22	70
40	LMFP40UU	1,060	LMKP40UU	880	40		60		80
50	LMFP50UU	2,200	LMKP50UU	2,000	50		80		100
60	LMFP60UU	3,000	LMKP60UU	2,560	60	0 -15	90	0 -25	110

Major dimensions and tolerance								Eccentricity μm	Squareness μm	Basic load rating
Flange										Basic load rating
I mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	22	5	20	3.5	6	3.1	12	12	206	265
5	32	25	5	24	3.5	6	3.1			274	392
6	40	30	6	29	4.5	7.5	4.1			372	549
6	42	32	6	32	4.5	7.5	4.1			510	784
6	43	34	6	33	4.5	7.5	4.1			510	784
6	48	37	6	38	4.5	7.5	4.1			774	1.180
8	54	42	8	43	5.5	9	5.1	15	15	882	1.370
8	62	50	8	51	5.5	9	5.1			980	1.570
10	74	58	10	60	6.6	11	6.1			1,570	2.740
10	82	64	10	67	6.6	11	6.1	20	20	1,670	3.140
13	96	75	13	78	9	14	8.1			2,160	4,020
13	116	92	13	98	9	14	8.1			3,820	7,940
18	134	106	18	112	11	17	11.1	25	25	4,700	10,000

LMF(K)P···GA (High-temperature Resistant Retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMFP···GA		LMKP···GA

Nominal shaft diameter mm	LMFP···GA	Weight (g)	LMKP···GA	Weight (g)	Major dimensions and tolerance
					dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMFP6GA	25.3	LMKP6GA	19.3	6	0 -9	12	0 -13	19	±300
8	LMFP8GA	39.3	LMKP8GA	31.3	8		15		24
10	LMFP10GA	74.5	LMKP10GA	54.5	10		19		29
12	LMFP12GA	81.2	LMKP12GA	62.2	12		21	0 -16	30	0 -200
13	LMFP13GA	95	LMKP13GA	79	13		23		32
16	LMFP16GA	137	LMKP16GA	121	16		28		37
20	LMFP20GA	205	LMKP20GA	170	20	0 -10	32	0 -19	42
25	LMFP25GA	402	LMKP25GA	362	25		40		59	0 -300
30	LMFP30GA	546	LMKP30GA	451	30		45		64
35	LMFP35GA	789	LMKP35GA	659	35	0 -12	52	0 -22	70
40	LMFP40GA	1,205	LMKP40GA	1,025	40		60		80
50	LMFP50GA	2,200	LMKP50GA	2,000	50		80		100
60	LMFP60GA	3,000	LMKP60GA	2,560	60	0 -15	90	0 -25	110

Major dimensions and tolerance								Eccentricity μm	Squareness μm	Basic load rating
Flange										Basic load rating
I mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	22	5	20	3.5	6	3.1	12	12	206	265
5	32	25	5	24	3.5	6	3.1			274	392
6	40	30	6	29	4.5	7.5	4.1			372	549
6	42	32	6	32	4.5	7.5	4.1			510	784
6	43	34	6	33	4.5	7.5	4.1			510	784
6	48	37	6	38	4.5	7.5	4.1			774	1,180
8	54	42	8	43	5.5	9	5.1	15	15	882	1,370
8	62	50	8	51	5.5	9	5.1			980	1,570
10	74	58	10	60	6.6	11	6.1			1,570	2,740
10	82	64	10	67	6.6	11	6.1	20	20	1,670	3,140
13	96	75	13	78	9	14	8.1			2,160	4,020
13	116	92	13	98	9	14	8.1			3,820	7,940
18	134	106	18	112	11	17	11.1	25	25	4,700	10,000

LMHP···UU (Resin retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.

Nominal shaft diameter mm	LMHP···UU	Weight (g)	Major dimensions and tolerance
			dr		D		L
			mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMHP6UU	21	6	0 -9	12	0 -13	19	±300
8	LMHP8UU	33	8		15		24
10	LMHP10UU	64	10		19		29
12	LMHP12UU	68	12		21	0 -16	30	0 -200
13	LMHP13UU	81	13		23		32
16	LMHP16UU	112	16		28		37
20	LMHP20UU	167	20	0 -10	32	0 -19	42
25	LMHP25UU	325	25		40		59	0 -300
30	LMHP30UU	388	30		45		64
35	LMHP35UU	580	35	0 -12	52	0 -22	70
40	LMHP40UU	920	40	0 -12	60	0 -22	80
50	LMHP50UU	2,037	50		80		100

Major dimensions and tolerance									Eccentricity μm	Squareness μm	Basic load rating
Flange											Basic load rating
I mm	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic CN	Static CoN
5	28	18	5	20	—	3.5	6	3.1	12	12	206	265
5	32	21	5	24	一	3.5	6	3.1			274	392
6	40	25	6	29	—	4.5	7.5	4.1			372	549
6	42	27	6	32	一	4.5	7.5	4.1			510	784
6	43	29	6	33	一	4.5	7.5	4.1			510	784
6	48	34	6	31	22	4.5	7.5	4.1			774	1,180
8	54	38	8	36	24	5.5	9	5.1	15	15	882	1,370
8	62	46	8	40	32	5.5	9	5.1			980	1,570
10	74	51	10	49	35	6.6	11	6.1			1,570	2,740
10	82	58	10	55	38	6.6	11	6.1	20	20	1,670	3,140
13	96	66	13	64	45	9	14	8.1	20	20	2.160	4,020
13	116	86	13	80	56	9	14	8.1			3,820	7,940

LMHP···GA (High-temperature Resistant Retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMHP···GA

Nominal shaft diameter mm	LMHP···GA	Weight (g)	Major dimensions and tolerance
			dr		D		L
			mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMHP6GA	22.3	6	0 -9	12	0 -13	19	±300
8	LMHP8GA	35.3	8		15	0 -13	24
10	LMHP10GA	65.5	10		19	0 -16	29
12	LMHP12GA	73.2	12		21		30	0 -200
13	LMHP13GA	88	13		23		32
16	LMHP16GA	129	16		28		37
20	LMHP20GA	192	20	0 -10	32	0 -19	42
25	LMHP25GA	387	25		40		59	0 -300
30	LMHP30GA	464	30		45		64
35	LMHP35GA	679	35	0 -12	52	0 -22	70
40	LMHP40GA	1,065	40	0 -12	60	0 -22	80
50	LMHP50GA	2,037	50		80		100

Major dimensions and tolerance									Eccentricity μm	Squareness μm	Basic load rating
Flange											Basic load rating
I mm	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	18	5	20	—	3.5	6	3.1	12	12	206	265
5	32	21	5	24	—	3.5	6	3.1			274	392
6	40	25	6	29	—	4.5	7.5	4.1			372	549
6	42	27	6	32	一	4.5	7.5	4.1			510	784
6	43	29	6	33	一	4.5	7.5	4.1			510	784
6	48	34	6	31	22	4.5	7.5	4.1			774	1,180
8	54	38	8	36	24	5.5	9	5.1	15	15	882	1,370
8	62	46	8	40	32	5.5	9	5.1			980	1,570
10	74	51	10	49	35	6.6	11	6.1			1,570	2,740
10	82	58	10	55	38	6.6	11	6.1	20	20	1,670	3,140
13	96	66	13	64	45	9	14	8.1	20	20	2,160	4,020
13	116	86	13	80	56	9	14	8.1			3,820	7,940
