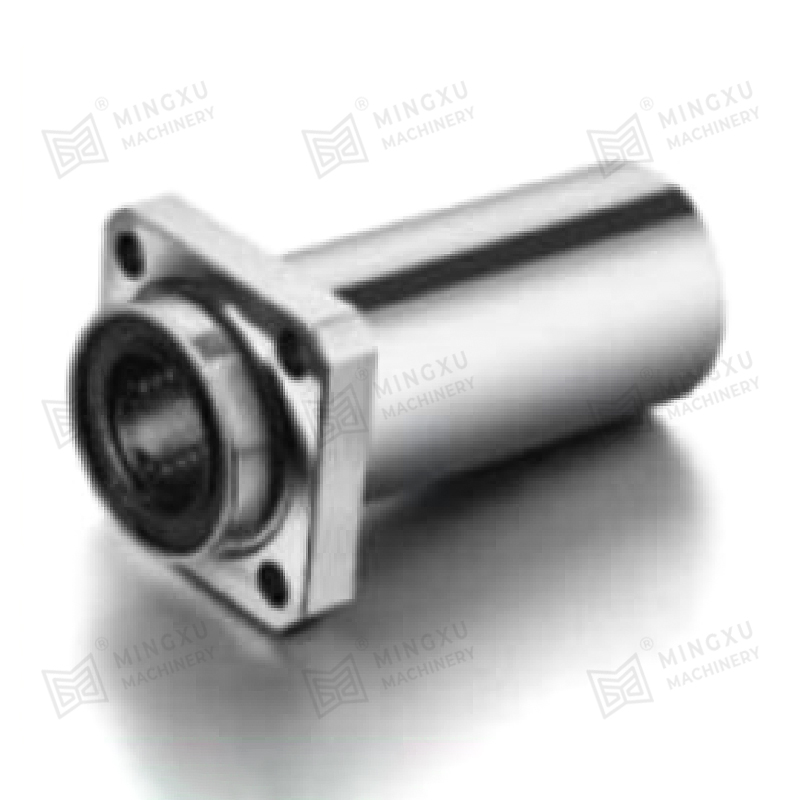

LMFP…L/LMKP…L/LMHP…L double-wide-position-pilot flanged linear motion bearing

This product is an extended version of the pilot flanged linear motion bearing. The longer length enables the linear bearing to have a larger support area and stronger load-bearing capacity, and can stably support large workpieces and high-speed moving machine tool workbenches or slides.

Get A Quote

PREV：LMFM…L/LMKM…L/LMHM…L double-wide-middle flanged linear motion bearing NEXT：LMFP/LMKP/LMHP pilot flanged linear motion bearing

Product Introduction
Parameter
Material Description
Contact Us

Classifications of Flanged Linear Motion Ball Bearings

Type	Mounting example	Flange type	Length
Standard Flanged Type		LMF	Single
		LMK	Single
		LMH	Single
Double-Wide Flanged Type		LMF…L	Double
		LMK…L	Double
		LMH…L	Double
Pilot Flanged Type		LMFP	Single
		LMKP	Single
		LMHP	Single
Double-Wide-Position-Pilot Flanged Type		LMFP…L	Double
		LMKP…L	Double
		LMHP…L	Double
Double-Wide-Middle Flanged Type		LMFM…L	Double
		LMKM…L	Double
		LMHM…L	Double
Flanged Stroke Bearing		LBHR LBHRW	Single
		LBHS LBHSW	Single
		LBHC LBHCW	Single

Product Features

1 Can work for a long time under oil-free conditions.

2 More suitable for low-speed and heavy-load workingconditions, with good wear resistance and extremely low frict.

3 Suitable for situations where oil film is difficult to form, such as reciprocating, rotating and intermittent movements.

4 Resistant to corrosion and oxidation.

5 Maintenance-free and long service life.

Zhejiang Mingxu Machinery Manufacturing Co., Ltd.

Why Choose Oilless Bearings

Reduce Manufacturing costs

There is no need for oil supply device, oil injection hole or oil groove processing, which can greatly save manufacturing costs.

Reduce Operating Costs

It greatly reduces the usage of lubricating oil, reduces equipment maintenance, and avoids hidden dangers caused by insufficient oil supply, effectively reducing operating costs.

Shorten Design Time

The oil-free design simplifies the product structure and effectively saves design time. We are professional ODM Suppliers of LMFP…L/LMKP…L/LMHP…L double-wide-position-pilot flanged linear motion bearing

Conducive To Environmental Protection

No waste oil recycling is required, which is also beneficial to environmental protection.

Application Fields

High Temperature

·Steel factory

·Smelting furnace

·Drying equipment

·Baking oven

·Heat controller

Water Proof

·Dam gate

·Water pump

·Fluid switch structure

·Offshore structures

·Dock and silt machine equipment

Chemical Industry

·Chemical factory

·Electroplating equipment

·Wastewater treatment equipment

·Dyeing machinery

·Oil and chemical refining equipment

Energy

·Wind power

·New energy

Ship

·Deck crane

·Anchor

·Hatch cover

·Rudder arm

·Lifting machinery and lifting ring equipment

Automobile Manufacturing

·Stamping mold

·Welding structure

·Painting and drying line

·Metal conveyor belt

·Machine tools

Heavy Industry

·Steel pipe factory machinery

·Tire and paper mills

·Power plant

·Connecting toggle of mold injection machinery

Construction, Mining, Loading

·Mixers, grinders, pulverizers

·Construction machinery

·Mining equipment

·Connecting rod bearings

Bridges and Lift Rails

·Bridge bearings

·Beams, bridges, suspension bridges

·Nuclear energy related reactors

·Steam generator

LMF(K)P···LUU (Resin retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMFP···LUU	LMKP···LUU

Nominal shaft diameter mm	LMFP···LUU	Weight (g)	LMKP···LUU	Weight (g)	Major dimensions and tolerance
					dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMFP6LUU	31	LMKP6LUU	25	6	0 -10	12	0 -13	35	±300
8	LMFP8LUU	51	LMKP8LUU	43	8		15		45
10	LMFP10LUU	98	LMKP10LUU	78	10		19		55
12	LMFP12LUU	110	LMKP12LUU	90	12		21	0 -16	57	0 -300
13	LMFP13LUU	130	LMKP13LUU	108	13		23		61
16	LMFP16LUU	190	LMKP16LUU	165	16		28		70
20	LMFP20LUU	260	LMKP20LUU	225	20	0 -12	32	0 -19	80
25	LMFP25LUU	540	LMKP25LUU	500	25		40		112	0 -400
30	LMFP30LUU	680	LMKP30LUU	590	30		45		123
35	LMFP35LUU	1,020	LMKP35LUU	930	35	0 -15	52	0 -22	135
40	LMFP40LUU	1,570	LMKP40LUU	1,380	40		60		151
50	LMFP50LUU	3,600	LMKP50LUU	3,400	50		80		192
60	LMFP60LUU	4,500	LMKP60LUU	4,060	60	0 -20	90	0 -25	209

Major dimensions and tolerance								Eccentricity μm	Squareness μm	Basic load rating
Flange										Basic load rating
I mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	22	5	20	3.5	6	3.1	15	15	323	529
5	32	25	5	24	3.5	6	3.1			431	781
6	40	30	6	29	4.5	7.5	4.1			588	1,100
6	42	32	6	32	4.5	7.5	4.1			813	1,570
6	43	34	6	33	4.5	7.5	4.1			813	1,570
6	48	37	6	38	4.5	7.5	4.1			1,230	2,350
8	54	42	8	43	5.5	9	5.1	20	20	1,400	2,740
8	62	50	8	51	5.5	9	5.1			1,560	3,140
10	74	58	10	60	6.6	11	6.1			2.490	5.490
10	82	64	10	67	6.6	11	6.1	25	25	2,650	6,270
13	96	75	13	78	9	14	8.1			3,430	8,040
13	116	92	13	98	9	14	8.1			6,080	15,900
18	134	106	18	112	11	17	11.1	30	30	7,550	20,000

LMF(K)P···LGA (High-temperature Resistant Retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMFP···LGA		LMKP···LGA

Nominal shaft diameter mm	LMFP···LGA	Weight (g)	LMKP···LGA	Weight (g)	Major dimensions and tolerance
					dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMFP6LGA	33.6	LMKP6LGA	27.6	6	0 -10	12	0 -10	35	±300
8	LMFP8LGA	55.6	LMKP8LGA	47.6	8		15		45
10	LMFP10LGA	103	LMKP10LGA	83	10		19		55
12	LMFP12LGA	120.4	LMKP12LGA	100.4	12		21	0 -16	57	0 -300
13	LMFP13LGA	144	LMKP13LGA	122	13		23		61
16	LMFP16LGA	224	LMKP16LGA	199	16		28		70
20	LMFP20LGA	310	LMKP20LGA	275	20	0 -12	32	0 -19	80
25	LMFP25LGA	664	LMKP25LGA	624	25		40		112	0 -400
30	LMFP30LGA	832	LMKP30LGA	742	30		45		123
35	LMFP35LGA	1,218	LMKP35LGA	1,128	35	0 -15	52	0 -22	135
40	LMFP40LGA	1,860	LMKP40LGA	1,670	40		60		151
50	LMFP50LGA	3,600	LMKP50LGA	3,400	50		80		192
60	LMFP60LGA	4,500	LMKP60LGA	4,060	60	-So	90	-25	209

Major dimensions and tolerance								Eccentricity μm	Squareness μm	Basic load rating
Flange										Basic load rating
I mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	22	5	20	3.5	6	3.1	15	15	323	529
5	32	25	5	24	3.5	6	3.1			431	781
6	40	30	6	29	4.5	7.5	4.1			588	1,100
6	42	32	6	32	4.5	7.5	4.1			813	1,570
6	43	34	6	33	4.5	7.5	4.1			813	1,570
6	48	37	6	38	4.5	7.5	4.1			1,230	2,350
8	54	42	8	43	5.5	9	5.1	20	20	1,400	2,740
8	62	50	8	51	5.5	9	5.1			1,560	3,140
10	74	58	10	60	6.6	11	6.1			2,490	5.490
10	82	64	10	67	6.6	11	6.1	25	25	2,650	6,270
13	96	75	13	78	9	14	8.1			3,430	8,040
13	116	92	13	98	9	14	8.1			6,080	15,900
18	134	106	18	112	11	17	11.1	30	30	7,550	20,000

LMHP···LUU Resin retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.

Nominal shaft diameter mm	LMHP···LUU	Weight (g)	Major dimensions and tolerance
			dr		D		L
			mm	Tolerance mm μm	mm	Tolerance μm	mm	Tolerance μm
6	LMHP6LUU	28	6	0 -10	12	0 -13	35	±300
8	LMHP8LUU	47	8		15	0 -13	45
10	LMHP10LUU	90	10		19	0 -16	55
12	LMHP12LUU	102	12		21		57	0 -300
13	LMHP13LUU	123	13		23		61
16	LMHP16LUU	182	16		28		70
20	LMHP20LUU	247	20	0 -12	32	0 -19	80
25	LMHP25LUU	525	25		40		112	0 -400
30	LMHP30LUU	645	30		45		123
35	LMHP35LUU	950	35	0 -15	52	0 -22	135
40	LMHP40LUU	1,450	40	0 -15	60	0 -22	151
50	LMHP50LUU	3,437	50		80		192

Major dimensions and tolerance									Eccentricity μm	Squareness μm	Basic load rating
Flange											Basic load rating
I mm	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	18	5	20	—	3.5	6	3.1	15	15	323	529
5	32	21	5	24	一	3.5	6	3.1			431	784
6	40	25	6	29	—	4.5	7.5	4.1			588	1,100
6	42	27	6	32	一	4.5	7.5	4.1			813	1,570
6	43	29	6	33	一	4.5	7.5	4.1			813	1,570
6	48	34	6	31	22	4.5	7.5	4.1			1,230	2,350
8	54	38	8	36	24	5.5	9	5.1	20	20	1,400	2,740
8	62	46	8	40	32	5.5	9	5.1			1,560	3,140
10	74	51	10	49	35	6.6	11	6.1			2,490	5,490
10	82	58	10	55	38	6.6	11	6.1	25	25	2,650	6,270
13	96	66	13	64	45	9	14	8.1	25	25	3,430	8,040
13	116	86	13	80	56	9	14	8.1			6,080	15,900

LMHP···LGA (High-temperature Resistant Retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMHP···LGA

Nominal shaft diameter mm	LMHP···LGA	Weight (g)	Major dimensions and tolerance
			dr		D		L
			mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMHP6LGA	30.6	6	0 -10	12	0 -13	35	±300
8	LMHP8LGA	51.6	8		15		45
10	LMHP10LGA	95	10		19		55
12	LMHP12LGA	112.4	12		21	0 -16	57	0 -300
13	LMHP13LGA	137	13		23		61
16	LMHP16LGA	216	16		28		70
20	LMHP20LGA	297	20	0 -12	32	0 -19	80
25	LMHP25LGA	649	25		40		112	0 -400
30	LMHP30LGA	797	30		45		123
35	LMHP35LGA	1,148	35	0 -15	52	0 -22	135
40	LMHP40LGA	1,740	40		60		151
50	LMHP50LGA	3,437	50		80		192

Major dimensions and tolerance									Eccentricity μm	Squareness μm	Basic load rating
Flange											Basic load rating
I mm	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
5	28	18	5	20	—	3.5	6	3.1	15	15	323	529
5	32	21	5	24	一	3.5	6	3.1			431	784
6	40	25	6	29	—	4.5	7.5	4.1			588	1,100
6	42	27	6	32	一	4.5	7.5	4.1			813	1,570
6	43	29	6	33	一	4.5	7.5	4.1			813	1,570
6	48	34	6	31	22	4.5	7.5	4.1			1,230	2,350
8	54	38	8	36	24	5.5	9	5.1	20	20	1,400	2,740
8	62	46	8	40	32	5.5	9	5.1			1,560	3,140
10	74	51	10	49	35	6.6	11	6.1			2,490	5,490
10	82	58	10	55	38	6.6	11	6.1	25	25	2,650	6,270
13	96	66	13	64	45	9	14	8.1	25	25	3,430	8,040
13	116	86	13	80	56	9	14	8.1			6,080	15,900

LMF(K)M···LUU (Resin retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers' requirements, with function of rust-proof.


LMFM···LUU	LMKM···LUU

Nominal shaft diameter mm	LMFM ···LUU	Weight (g)	LMKM···LUU	Weight (g)	Major dimensions and tolerance
					dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
6	LMFM6LUU	31	LMKM6LUU	25	6	0 -10	12	0 -13	35	±300
8	LMFM8LUU	51	LMKM8LUU	43	8		15		45
10	LMFM10LUU	98	LMKM10LUU	78	10		19		55
12	LMFM12LUU	110	LMKM12LUU	90	12		21	0 -16	57	0 -300
13	LMFM13LUU	130	LMKM13LUU	108	13		23		61
16	LMFM16LUU	190	LMKM16LUU	165	16		28		70
20	LMFM20LUU	260	LMKM20LUU	225	20	0 -12	32	0 -19	80
25	LMFM25LUU	540	LMKM25LUU	500	25		40		112	0 -400
30	LMFM30LUU	680	LMKM30LUU	590	30		45		123
35	LMFM35LUU	1,020	LMKM35LUU	930	35	0 -15	52	0 -22	135
40	LMFM40LUU	1,570	LMKM40LUU	1,380	40	0 -15	60		151
50	LMFM50LUU	3,600	LMKM50LUU	3,400	50	0 -20	80		192
60	LMFM60LUU	4,500	LMKM60LUU	4,060	60	0 -20	90	0 -25	209

Major dimensions and tolerance								Eccentricity μm	Squareness μm	Basic load rating
Flange										Basic load rating
I mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
15	28	22	5	20	3.5	6	3.1	15	15	323	529
20	32	25	5	24	3.5	6	3.1			431	781
24.5	40	30	6	29	4.5	7.5	4.1			588	1,100
25.5	42	32	6	32	4.5	7.5	4.1			813	1,570
27.5	43	34	6	33	4.5	7.5	4.1			813	1,570
32	48	37	6	38	4.5	7.5	4.1			1,230	2.350
36	54	42	8	43	5.5	9	5.1	20	20	1,400	2,740
52	62	50	8	51	5.5	9	5.1			1,560	3,140
56.5	74	58	10	60	6.6	11	6.1			2.490	5.490
62.5	82	64	10	67	6.6	11	6.1	25	25	2,650	6,270
69	96	75	13	78	9	14	8.1			3,430	8,040
89.5	116	92	13	98	9	14	8.1			6,080	15,900
95.5	134	106	18	112	11	17	11.1	30	30	7,550	20,000
