How the self-lubricating performance of graphite copper sleeve is reflected?

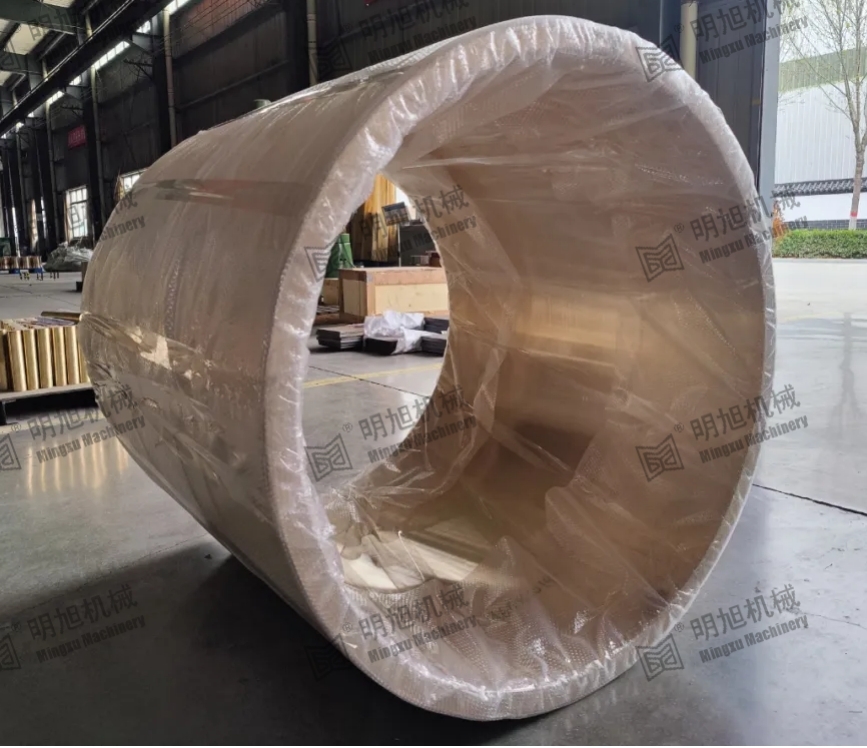

The graphite copper sleeve is a high-performance self-lubricating sliding bearing produced by Mingxu Machinery. It consists of a copper alloy matrix and graphite particles embedded in it. This design combines the high strength and high load-bearing capacity of copper alloy with the self-lubricating properties of graphite. The friction surface of the graphite copper sleeve is evenly distributed with graphite particles, which form a lubricating film between the bearing and the shaft, thereby reducing friction and wear, and can maintain good operation even without external lubricating oil.

The following is a detailed introduction to how the graphite copper sleeve achieves self-lubricating performance:

1. Material properties

• The role of graphite: Graphite is a material with good self-lubricating properties. Its crystal structure is layered, and the bonding force between layers is weak and easy to slide. In the graphite copper sleeve, graphite is evenly distributed in the copper matrix. When the copper sleeve is in motion, the graphite particles will form a lubricating film on the friction surface, reducing the friction coefficient and reducing wear.
• Characteristics of the copper matrix: Copper has good thermal conductivity and electrical conductivity, and can quickly dissipate the heat generated by friction to avoid local overheating. At the same time, copper has high strength and toughness, can withstand a certain load, and provide good support for graphite.

2. Working principle

• Initial stage: When the graphite copper sleeve starts to work, the graphite particles on the surface of the copper sleeve will gradually be exposed due to friction. These graphite particles will be adsorbed on the friction surface to form a thin layer of graphite film.
• Stable stage: As the friction progresses, the graphite film will be continuously worn and replenished. When the temperature of the friction surface rises, the lubrication performance of the graphite will be further improved, because the high temperature will weaken the interlayer bonding force of the graphite and make it easier to slide. At the same time, the copper matrix will also dissipate heat through thermal conductivity, keep the temperature of the friction surface within a certain range, and avoid oxidation or loss of lubrication performance of the graphite due to high temperature.
• Long-term operation: During long-term operation, the self-lubricating performance of the graphite copper sleeve can remain stable. Even without external lubrication, the graphite copper sleeve can work normally, reducing the maintenance cost and downtime of the equipment.

3. Performance advantages

• Low friction coefficient: The friction coefficient of graphite copper sleeve is usually between 0.03 and 0.15, which is much lower than that of ordinary metal materials. This means that under the same load and movement speed, the friction generated by graphite copper sleeve is smaller, which can reduce energy loss and wear.
• High wear resistance: Due to the lubrication of graphite, the wear rate of graphite copper sleeve is very low. Even under high-speed and heavy-load working conditions, graphite copper sleeve can maintain a long service life.
• No need for external lubrication: The self-lubricating property of graphite copper sleeve enables it to work normally in some occasions where external lubrication cannot be performed, such as high temperature, high vacuum, strong corrosion and other environments.
• Environmental protection and energy saving: Graphite copper sleeve does not require the use of lubricating oil, avoiding the pollution of the environment caused by lubricating oil leakage. At the same time, due to the low friction coefficient, it can reduce energy loss and improve the energy efficiency of equipment.

In short, the self-lubricating property of graphite copper sleeve is determined by its material properties and working principle. This performance makes Mingxu Machinery's graphite copper sleeve products widely used in various mechanical equipment, providing strong support for the stable operation of equipment and energy saving and consumption reduction.
